Briquetter Machine Sizes and Layouts

Standard Foundry Series Layouts

The following files are the standard layouts for the Foundry Series Briquetters. These files are representative of the area required for the machine, but are subject to change without notice and will change with any customization of the briquetter, infeed, or discharge.

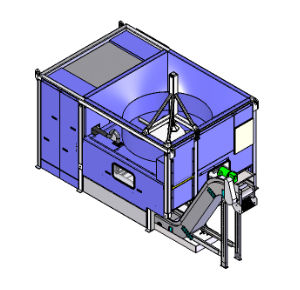

4000 model
RST4000
Max Capacity (lbs/hr) Aluminum 4000, Steel 8000, Copper 11,000, Briquette size 6" diameter, 125hp, 16" Main cylinder bore, System pressure 5,000 psi

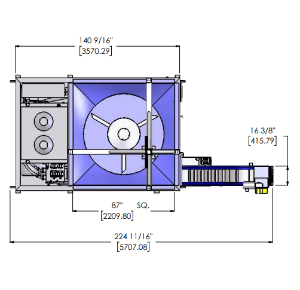

3000 model
RST3000
Max Capacity (lbs/hr) Aluminum 3000, Steel 6000, Copper 8,500, Briquette size 5" diameter, 125hp, 16" Main cylinder bore, System pressure 5,000 psi
2500 model
RST2500
Max Capacity (lbs/hr) Aluminum 2,500, Steel 5,000, Copper 7,500, Briquette size 5" diameter, 75hp, 14" Main cylinder bore, System pressure 5,000 psi
2000 model
RST2000
Max Capacity (lbs/hr) Aluminum 2,000, Steel 4,000, Copper 6,000, Briquette size 5" diameter, 60hp, 14" Main cylinder bore, System pressure 5,000 psi
1500 model
RST1500
Max Capacity (lbs/hr) Aluminum 1,500, Steel 3,000, Copper 4,500, Briquette size 5" diameter, 40hp, 14" Main cylinder bore, System pressure 5,000 psi

Standard Industrial Series Layouts

The following files are the standard layouts for the Industrial Series Briquetters. These files are representative of the area required for the machine, but are subject to change without notice and will change with any customization of the briquetter, infeed, or discharge.

75 model
RST075
An adobe pdf file of the standard layout drawing for an RST 075 Briquetter from the industrial series. Custom layouts are available by request.

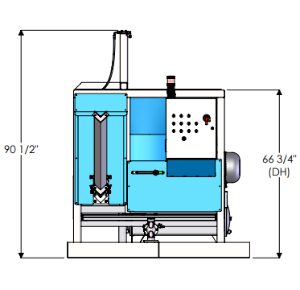

250 model
RST250
An adobe pdf file of the standard layout drawing for an RST 250 Briquetter from the industrial series. Custom layouts are available by request.
600 model
RST600
An adobe pdf file of the standard layout drawing for an RST 600 Briquetter from the industrial series. Custom layouts are available by request.
600 model
RST600BLG
An adobe pdf file of the standard layout drawing for an RST 600 BLG Briquetter from the industrial series. Custom layouts are available by request.
600 model
RST1000
An adobe pdf file of the standard layout drawing for an RST 1000 Briquetter from the industrial series. Custom layouts are available by request.
